Freezer Temperature Monitoring System: Automatic HACCP Logging and Alarms Without Opening the Door

A freezer that loses its compressor at 02:00 on a Saturday does not fail quickly. At -18 °C with a full load it drifts for hours, and the manual log that says "-18, OK" at 18:00 on Friday is still legally true when the next reading is written down on Monday morning. The problem with hourly clipboard logging is not that staff are careless. It is that an hourly reading, taken when the door is being opened anyway, is a sample of the one moment you least need to know about and a blank page for the moments you do.

That is the case for an automatic freezer temperature monitoring system. The rest of this article is about what to look for when you choose one, because the differences between products are mostly hidden inside the door seal, in the radio, and in the paperwork that comes with the sensor.

Why the probe goes inside and the electronics stay outside

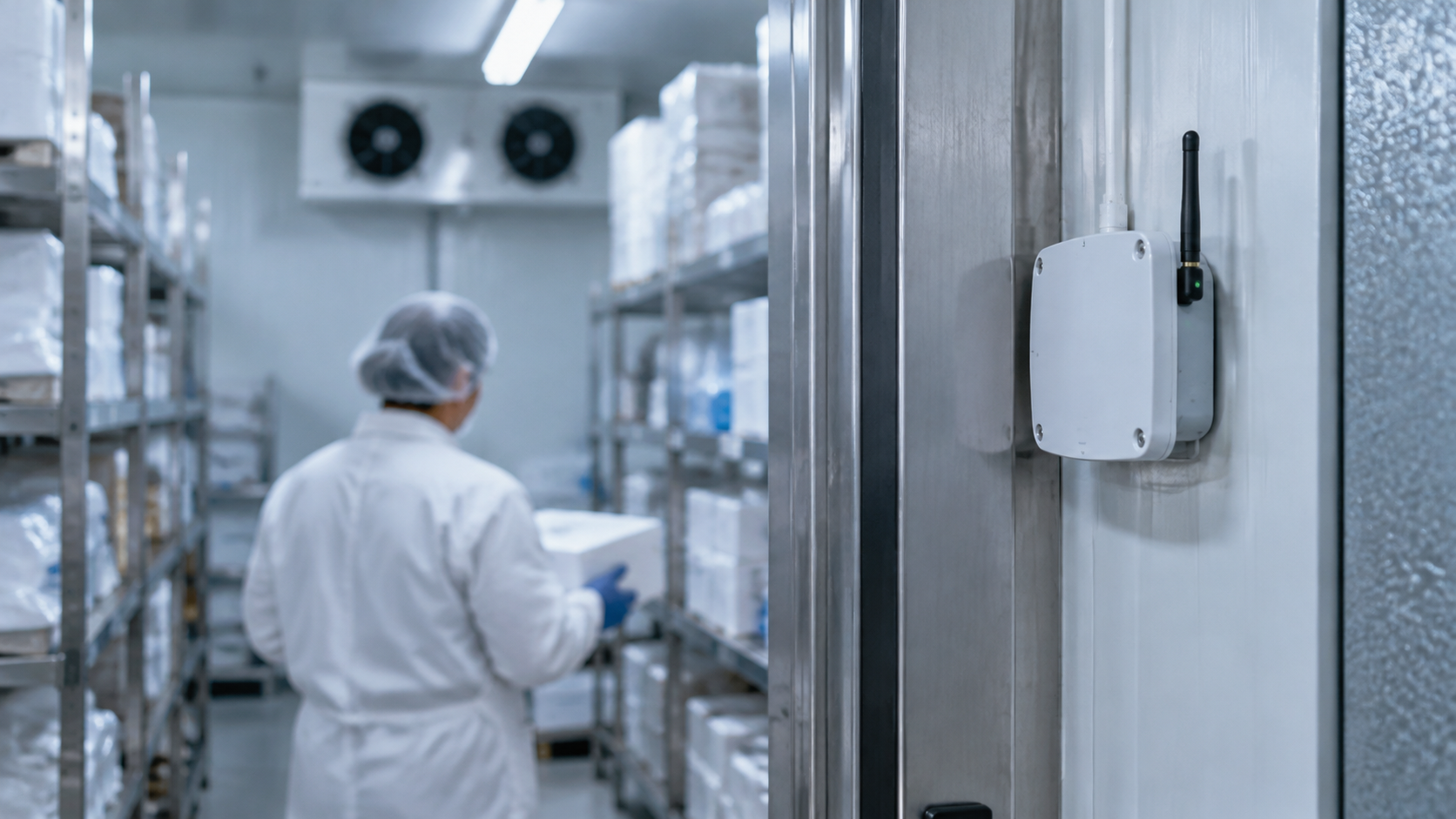

Steel freezer containers and insulated cold room panels are, from a radio's point of view, a closed box. A transmitter placed on a shelf inside will struggle to reach anything. The practical design is a thin probe cable routed through the door seal, with the probe inside the cold space and the transmitter and battery mounted on the outside wall. The probe is rated down to -40 °C, so blast freezers and container units are covered. The battery, meanwhile, never sees the cold at all, which matters because lithium cells lose a large share of their capacity below freezing. Keeping the electronics outside protects both battery life and radio range in one move.

This is also why a standard room sensor is the wrong tool for a freezer. Combined temperature and humidity modules are designed for offices and start to misbehave or stop reporting well before -18 °C. The short version is that both the sensing element and the battery chemistry are outside their design range; the full explanation is in our article on why standard sensors fail at minus eighteen.

One thing installers learn on the second job rather than the first: route the cable through the seal on the hinge side, not the latch side, and keep the probe away from the evaporator outlet. A probe mounted in the fan stream will show every defrost cycle as a sharp spike, and you will spend the first fortnight tuning alarms that were never about the product.

WiFi, SIM card or LoRaWAN: the radio decision

Wireless temperature monitoring stands or falls on the network it runs over, and there are three realistic options.

• WiFi uses the site network and its access points. It is cheap to try and expensive to live with: coverage behind a loading dock or in a yard full of containers is rarely good, metal attenuates the signal, and every password change or access point swap by IT becomes a monitoring outage.
• A SIM card in every logger removes the dependency on the site network, but each unit carries its own mobile subscription. For three freezers that is tolerable. For forty cold rooms across twelve sites it is forty contracts to renew and forty data plans to reconcile.
• LoRaWAN is a long-range, low-power radio standard where many sensors share one gateway, and the gateway sends the data to the cloud. Vemco gateways use 4G as fallback, so there is no cabling and no dependency on the customer network at all. One gateway typically covers a distribution hall and the container yard outside it.

For most multi-site food operators, LoRaWAN is the option that scales. How it fits with the rest of the building data is covered in our note on LoRaWAN in the Vemco platform.

What to demand from the temperature data logger itself

Vemco is sensor-agnostic. The platform works with LoRaWAN sensors from partners such as Milesight, whose TS series temperature sensors are certified to EN 12830 and store readings locally, so a gateway reboot or a 4G drop does not leave a hole in the record; the sensor resends what it buffered once the connection returns. That buffering is the single feature most buyers forget to ask about and most regret not having.

Readings arrive every few minutes. Set against the hourly logging many food businesses still use, that changes what the record can prove. Instead of two points either side of an incident, you have the whole curve: when the rise started, how fast it climbed, and when it came back under -18 °C after the engineer left.

The rules, briefly

For quick-frozen foods, EU Regulation (EC) No 37/2005 requires regular recording of air temperature with instruments that conform to the applicable EN standards, with records kept for at least one year, and Directive 89/108/EEC generally requires -18 °C or colder. Ask suppliers for written evidence of EN conformity for the specific sensor, not only a CE declaration, which covers something quite different. Outside the EU, local rules may differ, but a conforming temperature data logger with a continuous record satisfies most inspectors anywhere.

Limits, delays and who gets woken up

Each monitoring point carries a high limit, a low limit and a delay. The delay is what separates a usable system from a nuisance: a door held open for a pallet pick breaches the high limit for a few minutes and then recovers, so no alarm is sent. A failing compressor breaches it and stays there, and the alarm fires. Alarms go by email or API to an escalation list, and every alarm is stored alongside the readings, so the self-inspection file shows not only that the temperature rose but that someone was notified and when. That is the extent of what needs saying about alarms; the logic is simple and it should stay simple.

HACCP temperature monitoring that produces its own evidence

Daily, weekly or monthly reports per site or per unit can be exported straight into the self-inspection file, and the full history is retained rather than overwritten. For a chain running cold room temperature monitoring across dozens of locations, that means the quality manager prepares for an audit from a desk, not from a filing cabinet in each store.

Every point ships with a traceable factory calibration certificate. Annual recalibration and performance verification are recommended, and most auditors will ask for the certificate before they ask for the data, so keep it with the HACCP plan rather than in the box the sensor came in.

Buy, rent, and start with four units

There are two commercial routes. Customers can buy the sensors and gateways and license VemSpace per monitoring point, or rent all-inclusive per active point per month with hardware, connectivity and platform in one line on the invoice. Either way the sensible path is to start with a few units on the freezers that worry you most and add the rest once the alarm thresholds are tuned. Adding points takes hours, not weeks, because there is no cabling and the gateway is already in place.

Monitoring runs in VemSpace, the in-house developed IoT module of the Vemco platform, next to energy, air quality and occupancy data. That matters more than it first appears. A freezer temperature monitor on its own tells you the room is warming. The same reading next to the compressor's energy curve tells you whether the compressor is running flat out and losing, or has stopped drawing power altogether, which is the difference between a blocked condenser and a tripped breaker. The solution overview is at cold storage temperature monitoring.

A short checklist before you sign

• Probe rated to -40 °C, with the transmitter and battery outside the cold space.
• Written EN 12830 conformity for the sensor, not just a CE declaration.
• Local storage in the sensor so gaps are backfilled after a connection loss.
• A radio that does not depend on your IT department or on one subscription per unit.
• High limit, low limit and delay configurable per point, with alarms stored next to the readings.
• Traceable calibration certificate per point and a plan for annual recalibration.
• Exportable reports per site and per unit, with history kept for at least one year.

If you are replacing manual logging across freezers, freezer rooms or cold rooms and want to see how a wireless temperature monitoring setup would look on your sites, with the number of gateways, the per-point cost and a sample self-inspection report, contact Vemco Group and we will put a proposal together around your actual unit count.
